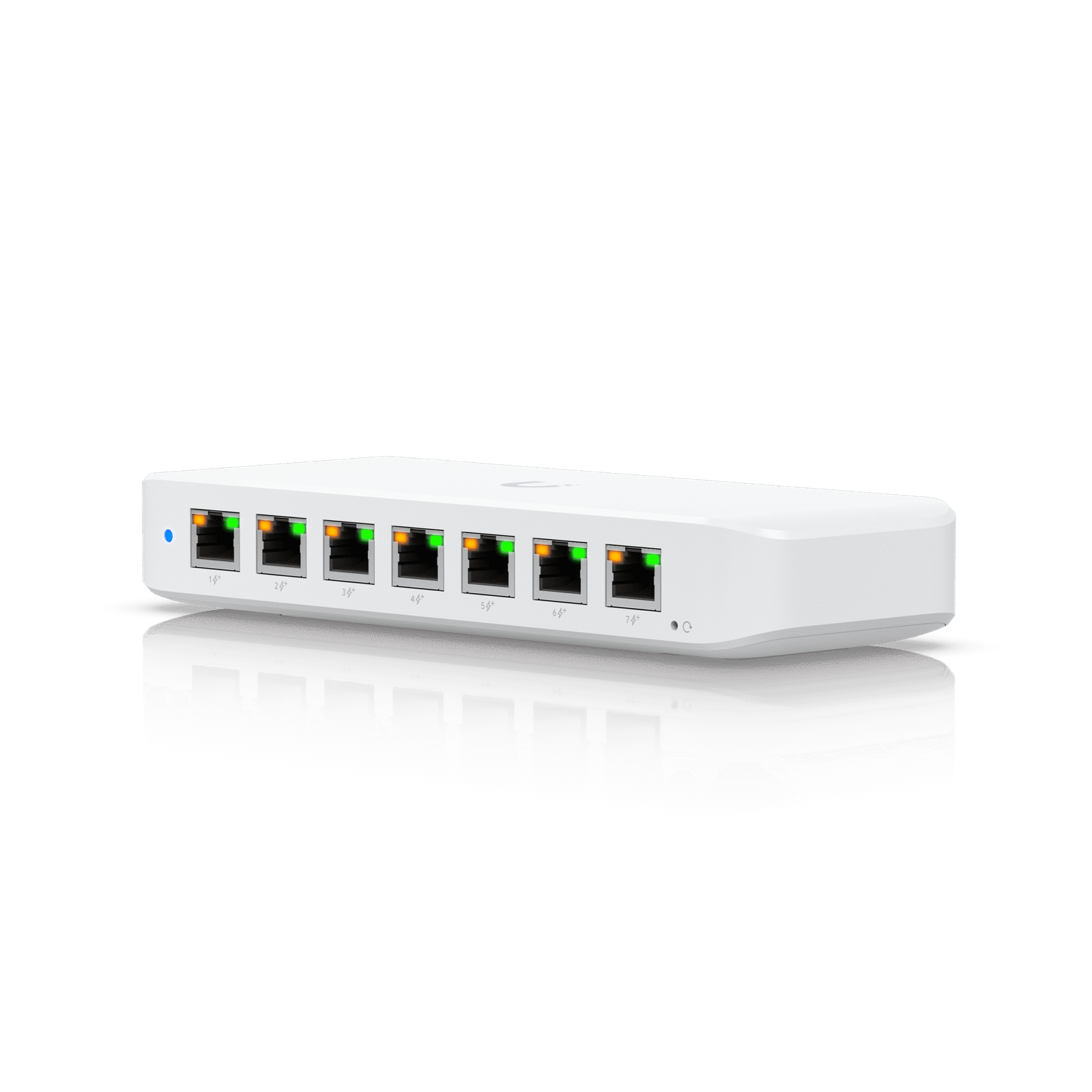

Ubiquiti – USW-Ultra – 60 W

Dimensions 203 x 76 x 33 mm (8 x 3 x 1.3″)

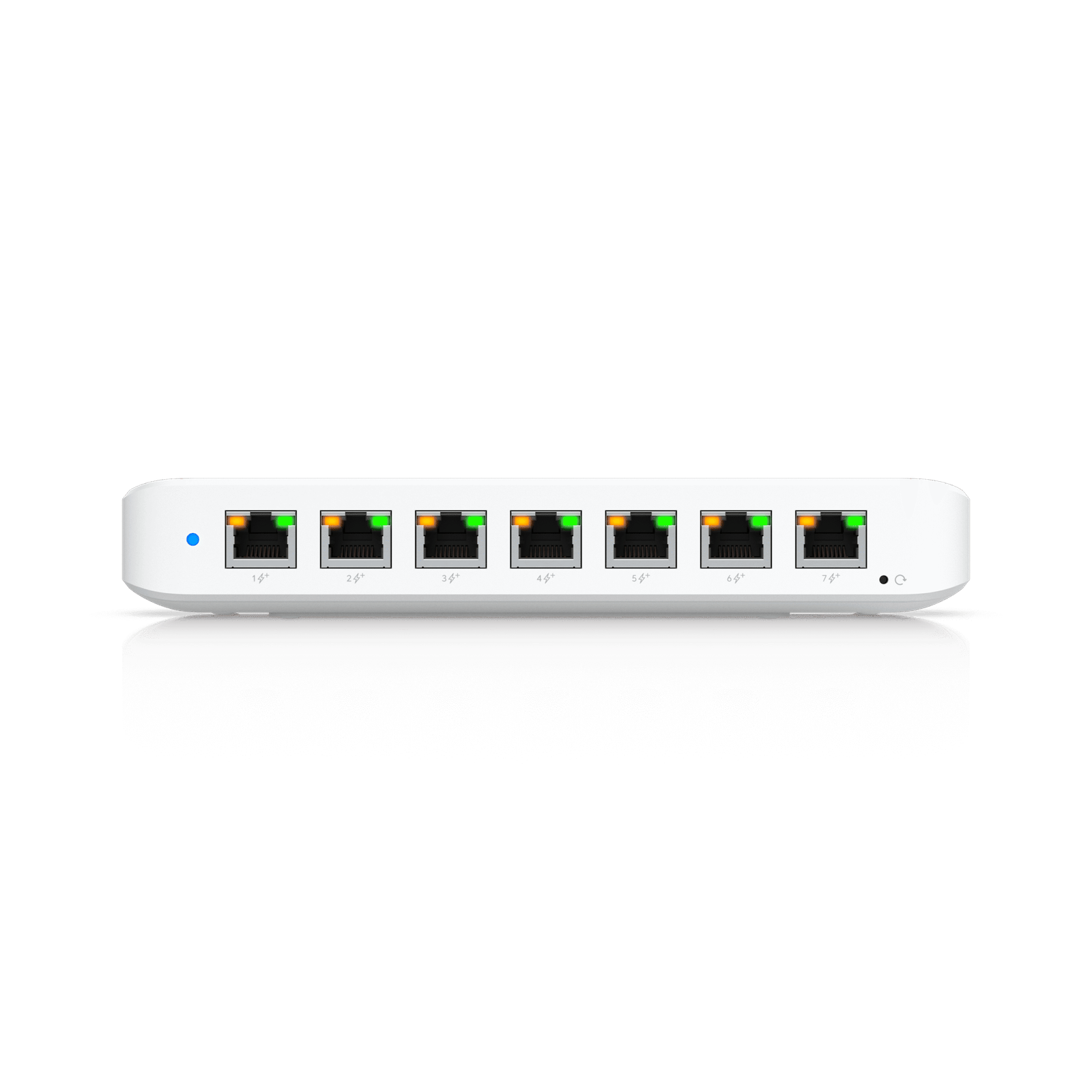

Port Layout  1 GbE RJ45 8 (7 PoE+; 1 PoE++ input) (1G/100M/10M)

Max. PoE Output Up to PoE+
Total PoE Availability PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W

Form Factor Compact desktop, wall, magnetic

Switching Capacity 16 Gbps
Total Non-Blocking Throughput 8 Gbps
Forwarding Rate 12 Mpps
Supported VLANs 256
MAC Address Table Size 4,000

✓ STP & RSTP
✓ Egress Rate Limit
✓ Flow Control
✓ Storm Control
✓ Multicast & Broadcast Rate Limiting
✓ Port Isolation
✓ Port Mirroring
✓ Jumbo Frames
✓ Loop Protection

PoE Ports

PoE+ 7
PoE++ 1

Max. PoE Wattage per Port by PSE

PoE+ 30W

Max. Power Consumption 9W (Excluding PoE Output) with PoE input 8W (Excluding PoE Output) with adapter input 210W (Including PoE Output) with 210W AC adapter input

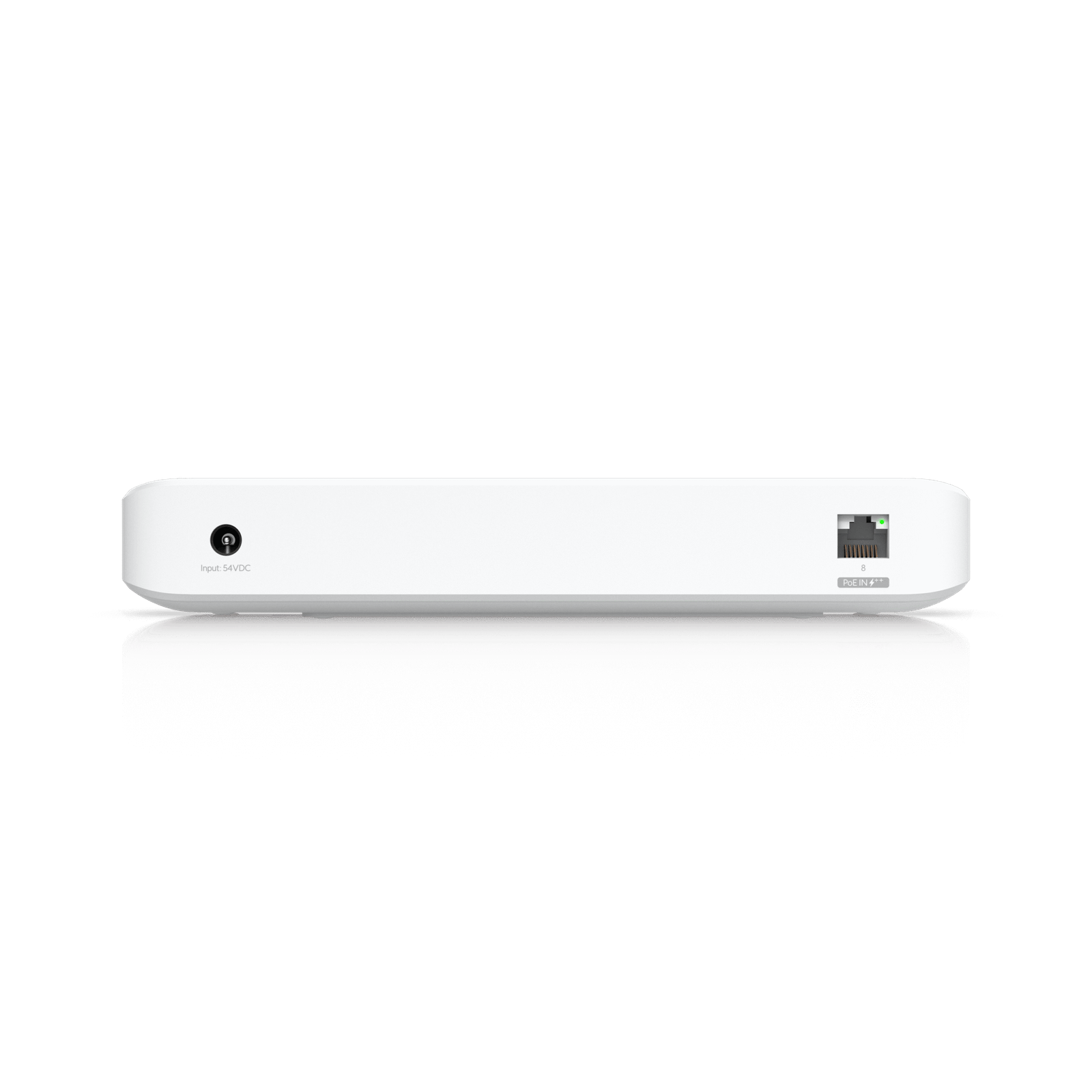

Power Method (1) AC/DC adapter (Included) (1) PoE++
Power Input Method DC Input PoE
Power Supply AC/DC, external, 60W
Supported Voltage Range 50—57V DC/PoE
Management Ethernet
Heat Dissipation (Excluding PoE Output) 30.708 BTU/hr 27.296 BTU/hr
Weight Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) Adapter: 330 g (11.6 oz)
Enclosure Material Polycarbonate
Ambient Operating Temperature PoE++ input: -30 to 60° C (-22 to 140° F) 60W AC adapter input: -20 to 45° C (-4 to 113° F)
Ambient Operating Humidity 10 to 90% noncondensing
✓ NDAA Compliant
Certifications CE, FCC, IC, Anatel: 06367-24-08356
