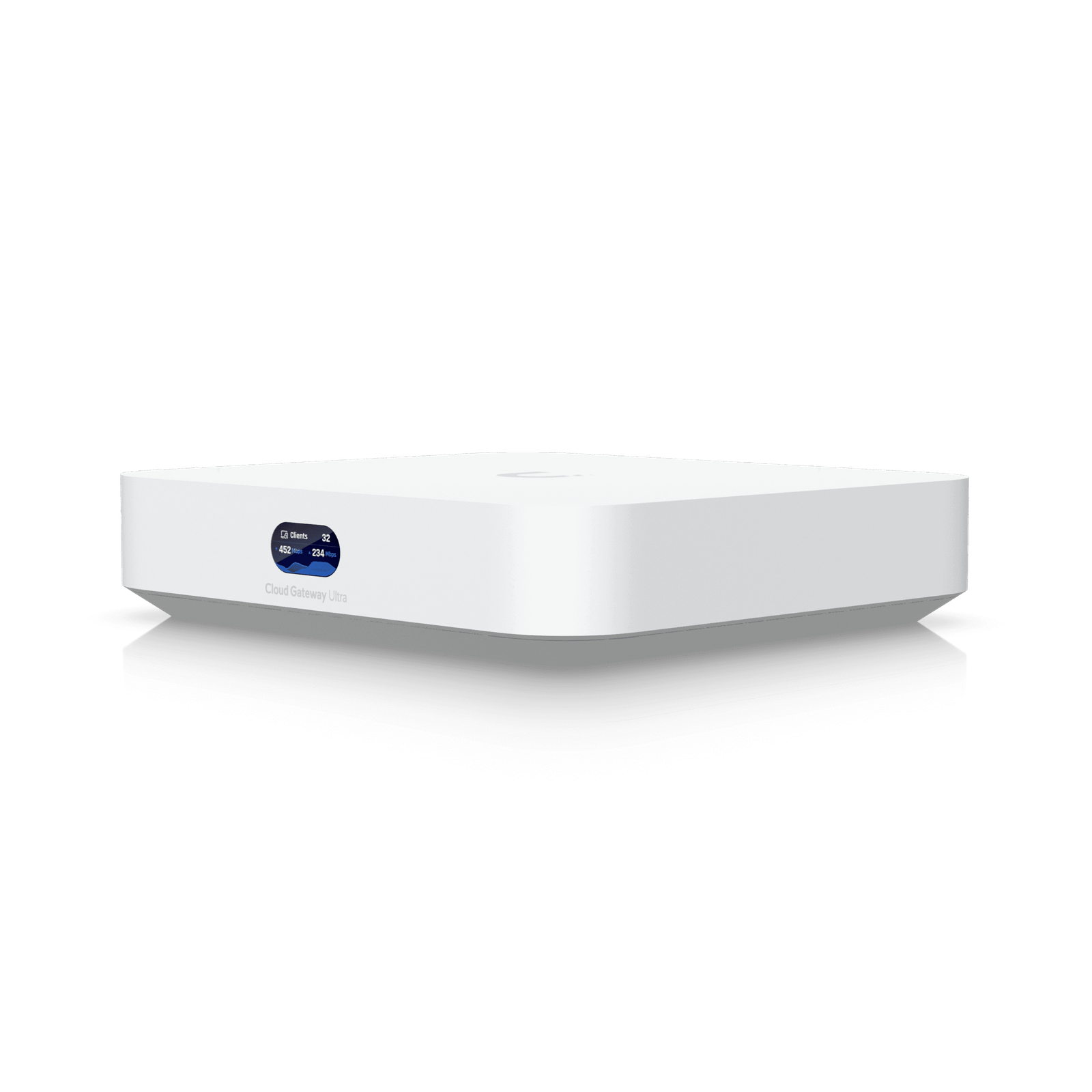

Ubiquiti UniFi Cloud Gateway Ultra ( UCG-Ultra )

Dimensions 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2″)
UniFi Application Suite

✓ Network
Managed UniFi Devices 30+
Simultaneous Users Connected 300+
Max. WAN Port Count 4
Default WAN Ports (1) 2.5 GbE RJ45

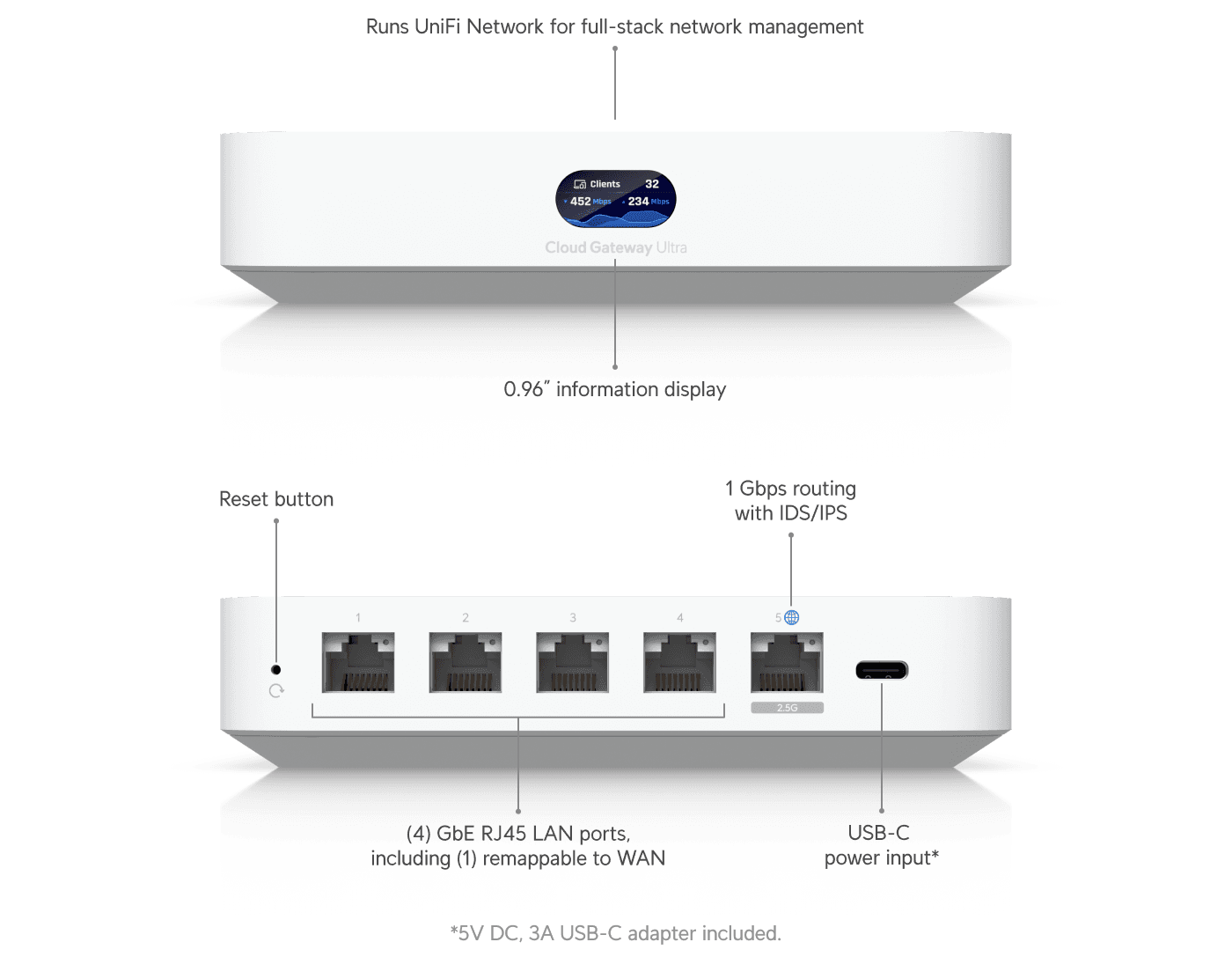

Port Layout

1 GbE RJ45 4 (1G/100M/10M)
2.5 GbE RJ45 1 (2.5G/1G/100M/10M)

IDS/IPS Throughput 1 Gbps
Form Factor Compact desktop

✓ Stateful Firewall
✓ Application-Aware Layer 7 Firewall
✓ DPI & Traffic Identification
✓ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓ Content Filtering
✓ Intrusion Prevention (IPS/IDS)
✓ Ad Blocking
IDS/IPS Signatures 55,000+ with CyberSecure
✓ VLAN/Subnet-based Traffic Segmentation

✓ License-Free SD-WAN
Site-to-Site VPN

✓ Site Magic
✓ IPsec
✓ OpenVPN

VPN Server

✓ Identity Endpoint One-Click VPN
✓ Teleport Zero-Configuration VPN
✓ WireGuard
✓ OpenVPN
✓ L2TP

VPN Client

✓ OpenVPN
✓ WireGuard

✓ Multi-WAN Load Balancing
Dynamic Routing

✓ OSPF
✓ Advanced QoS
✓ Multicast DNS (mDNS)
✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓ Integrated RADIUS Server
✓ RADIUS over TLS (RadSec)
✓ Additional Internet Failover with UniFi LTE Backup
✓ Internet Quality and Outage Reporting
MAC Address Table Size 2,000
✓ Policy-based WAN and VPN Routing
✓ Customizable DHCP Server
✓ IPv6 ISP Support
✓ IGMP Proxy

Max. Power Consumption 6.2W
Power Method USB type C (5V DC/3A)
Power Supply USB type C (5V DC/3A) (Adapter included)
Supported Voltage Range 100—240V AC
Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory 3 GB
On-board Storage 16 GB
Weight 520 g (1.1 lb)
Enclosure Material Polycarbonate
LCM Display 0.96″ status display
Management Ethernet Bluetooth

LEDs

✓ Ethernet
Button (1) Factory-reset

Ambient Operating Temperature -10 to 40° C (14 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
✓ NDAA Compliant
Certifications CE, FCC, IC, Anatel, SRRC

Application Requirements
