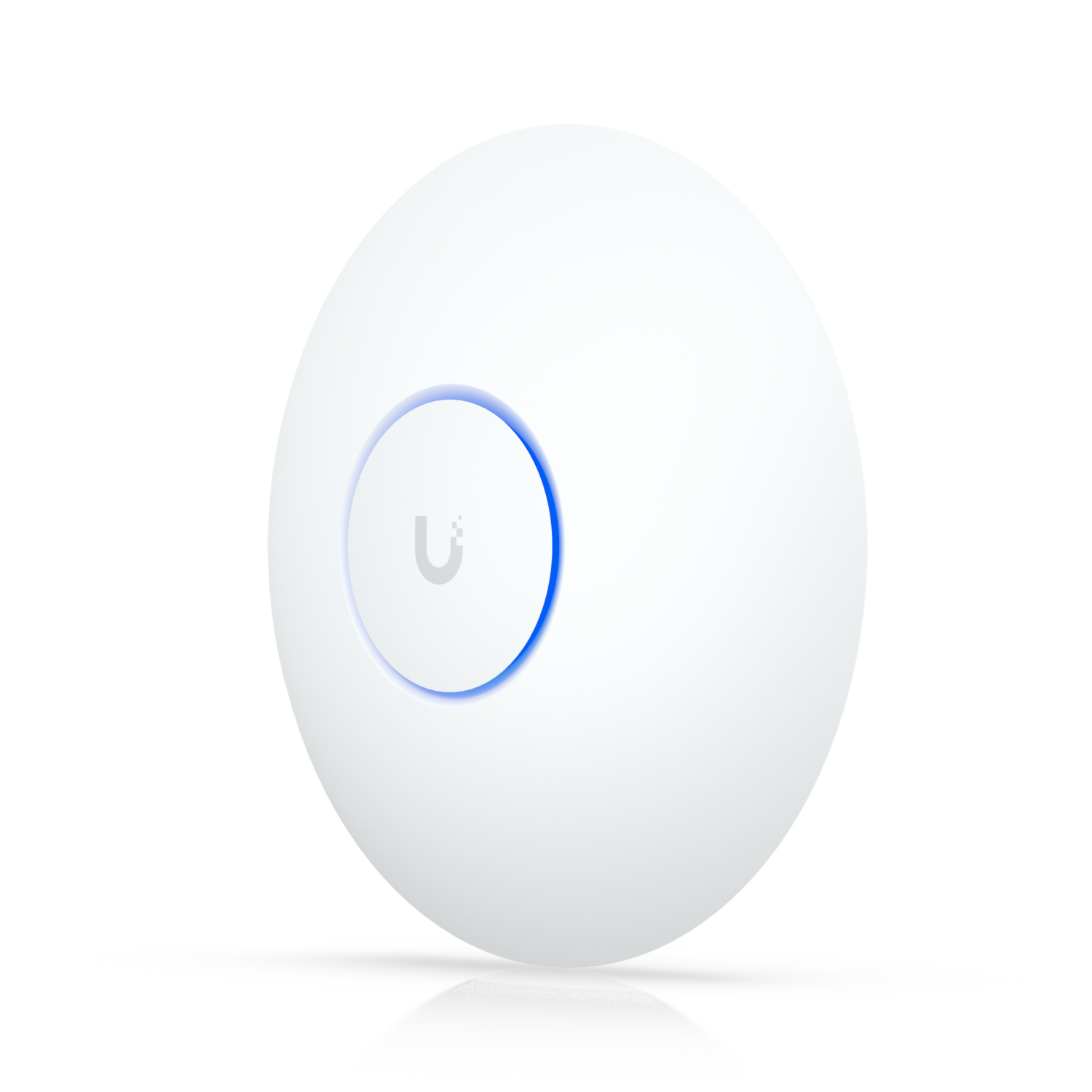

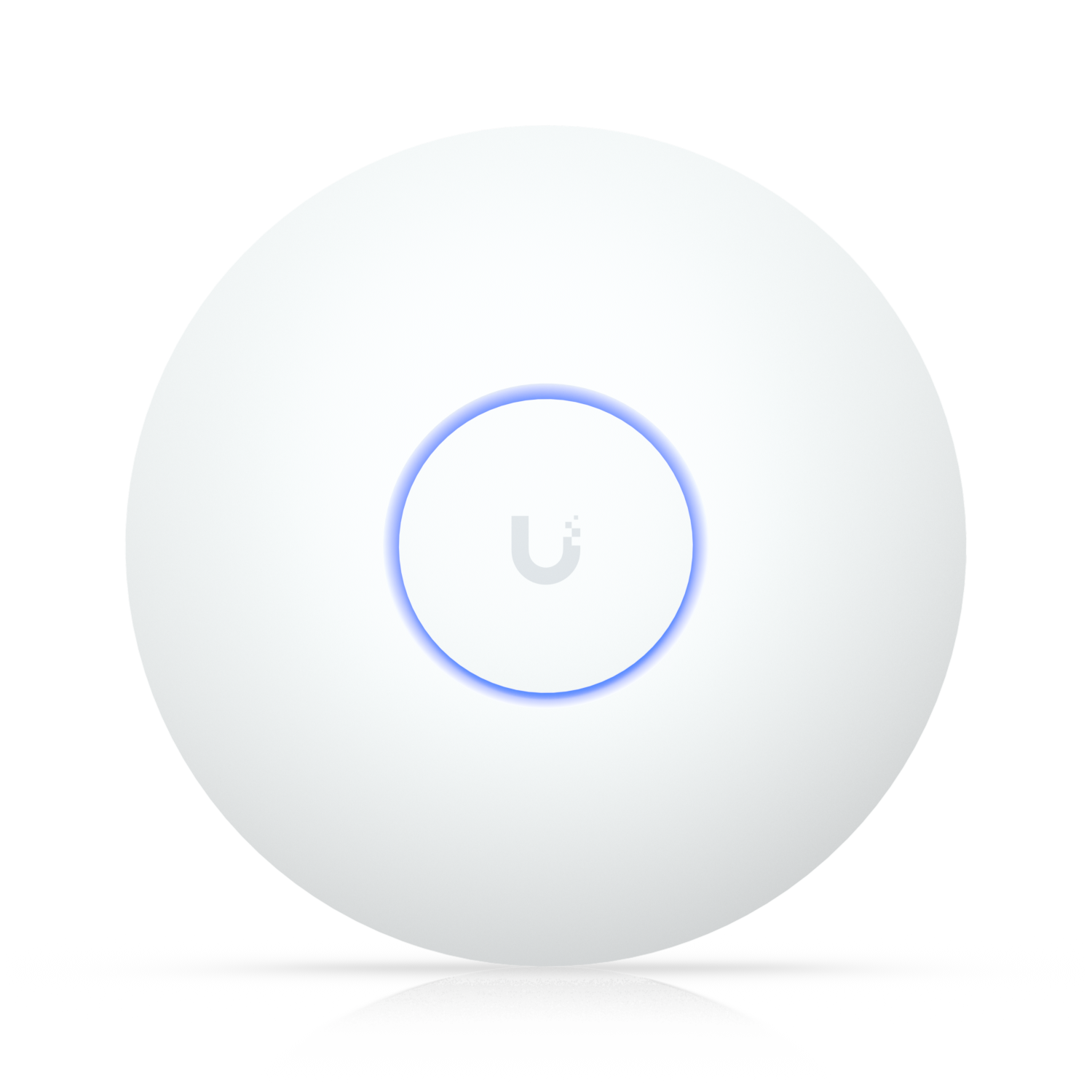

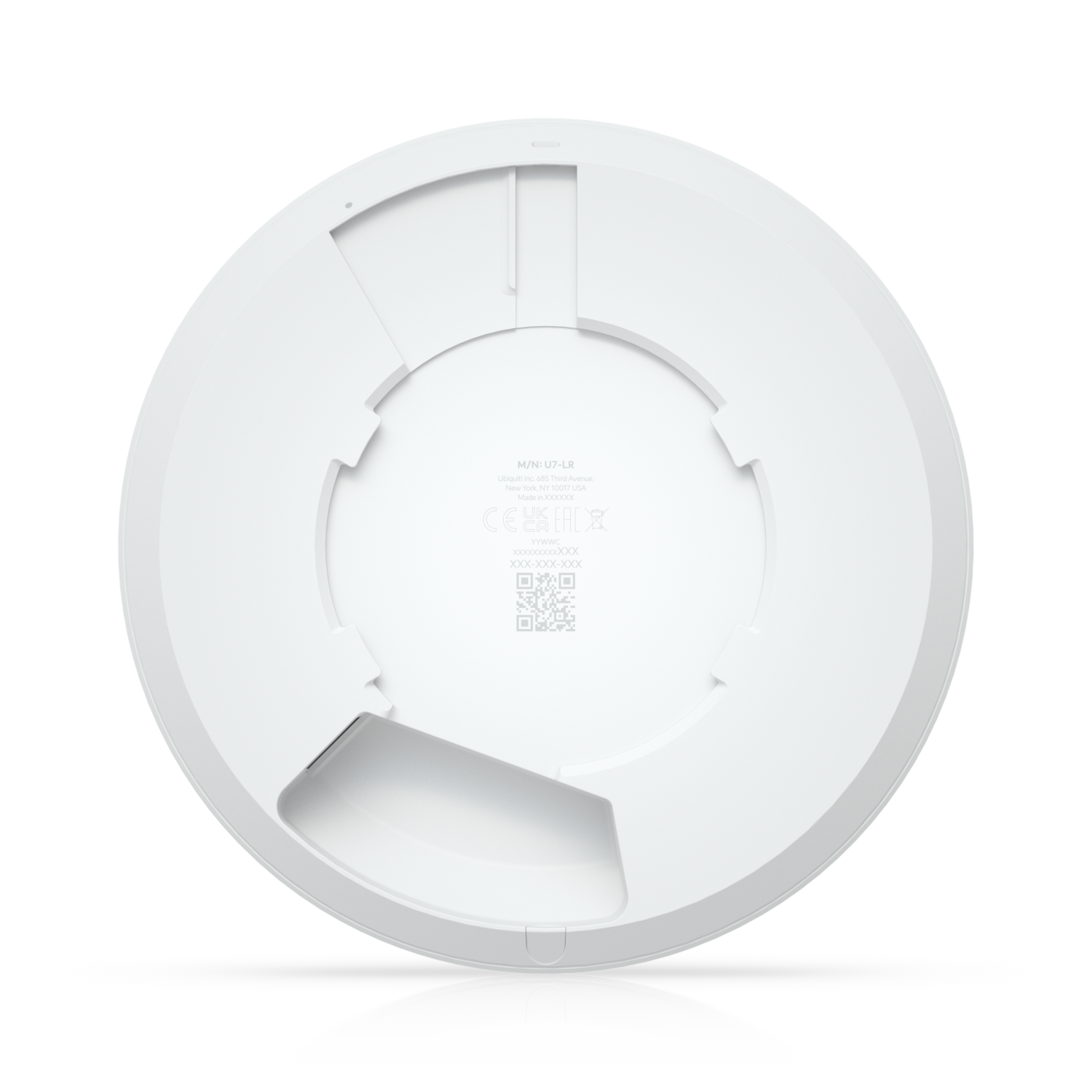

Ubiquiti UniFi Access Point U7 Long-Range (U7-LR)

Dimensions Ø175.7 x 43 mm (Ø6.9 x 1.7″)
WiFi Standard WiFi 7
Spatial Streams 5
Coverage Area 160 m² (1,750 ft²)
Max. Client Count 300+
Uplink 2.5 GbE
Mounting Ceiling, Wall (Plastic Mounting Plate included)
Power Method PoE

MIMO
5 GHz 3 x 3 (DL/UL MU-MIMO)
2.4 GHz 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz 4.3 Gbps (BW160)
2.4 GHz 688 Mbps (BW40)
Antenna Gain
5 GHz 6 dBi
2.4 GHz 4 dBi
Max. TX Power
5 GHz 27 dBm
2.4 GHz 26 dBm
Supported Data Rates
802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 3.6 Gbps (MCS0 – MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5) 6.5 Mbps to 2.6 Gbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)

✓ Wireless Meshing
✓ Band Steering
✓ 802.11v BSS Transition Management
✓ 802.11r Fast Roaming
✓ 802.11k Radio Resource Management (RRM)
✓ Advanced Radio Management
✓ Passpoint (Hotspot 2.0)
Captive Hotspot Portal
✓ Custom Branding Landing Page
✓ Voucher Authentication
✓ Payment-Based Authentication
✓ External Portal Server Support
✓ Password Authentication
✓ Guest Network Isolation
✓ Private Pre-Shared Key (PPSK)
✓ WiFi Speed Limiting
✓ Client Device Isolation
✓ WiFi Schedules
✓ RADIUS over TLS (RadSec)
✓ Dynamic RADIUS-assigned VLAN

Max. Power Consumption 14W
Includes PoE Adapter —
Supported Voltage Range 42.5—57V DC
Networking Interface (1) 2.5 GbE RJ45 port
Weight 448 g (15.8 oz)
Management Ethernet
Enclosure Material Polycarbonate, aluminum alloy
Mount Material Polycarbonate, galvanized steel (SGCC)
LEDs System White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
✓ NDAA Compliant
Certifications CE, FCC, IC, Anatel, SRRC
Ambient Operating Temperature -30 to 50° C (-22 to 122° F)
Ambient Operating Humidity 5 to 95% noncondensing

Application Requirements
