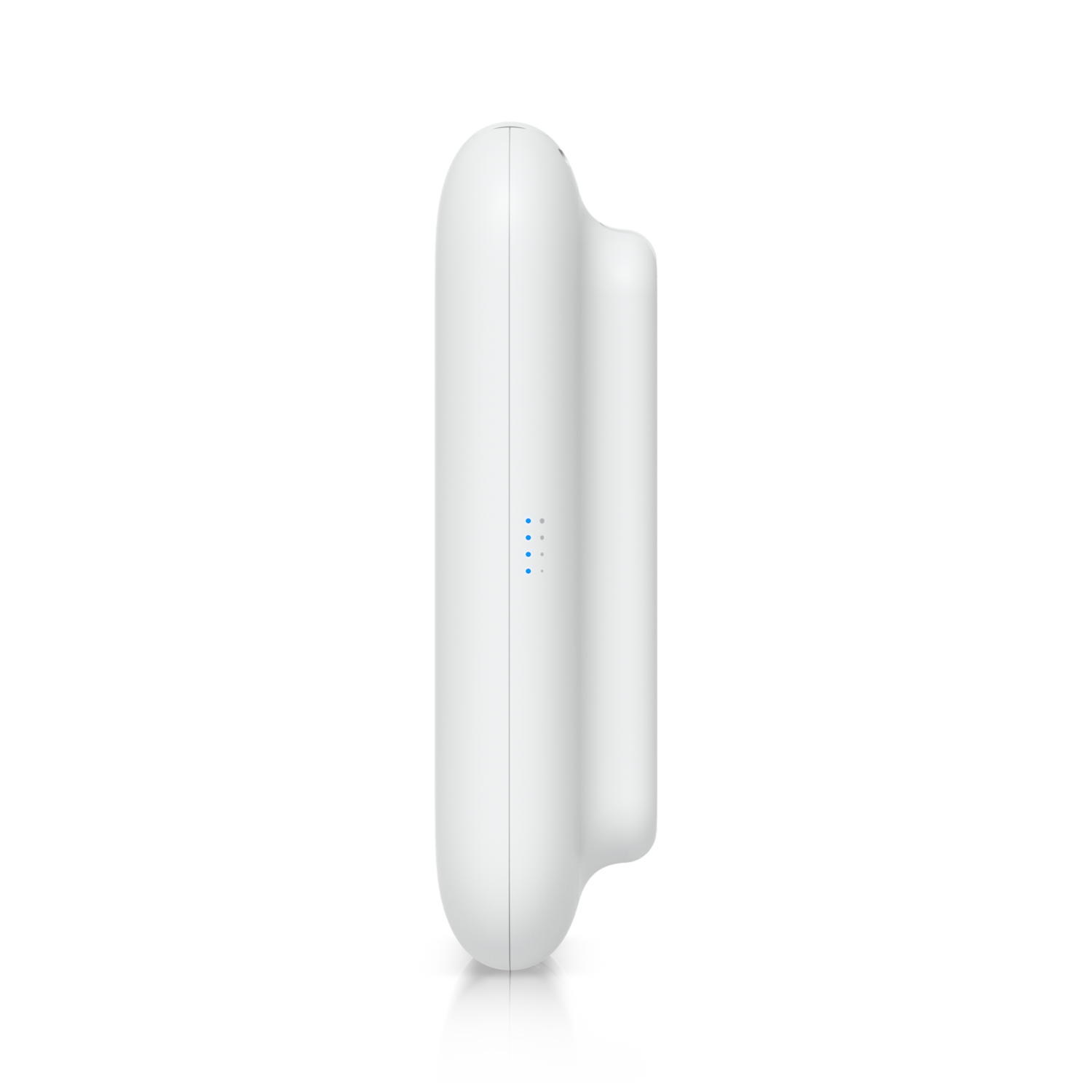

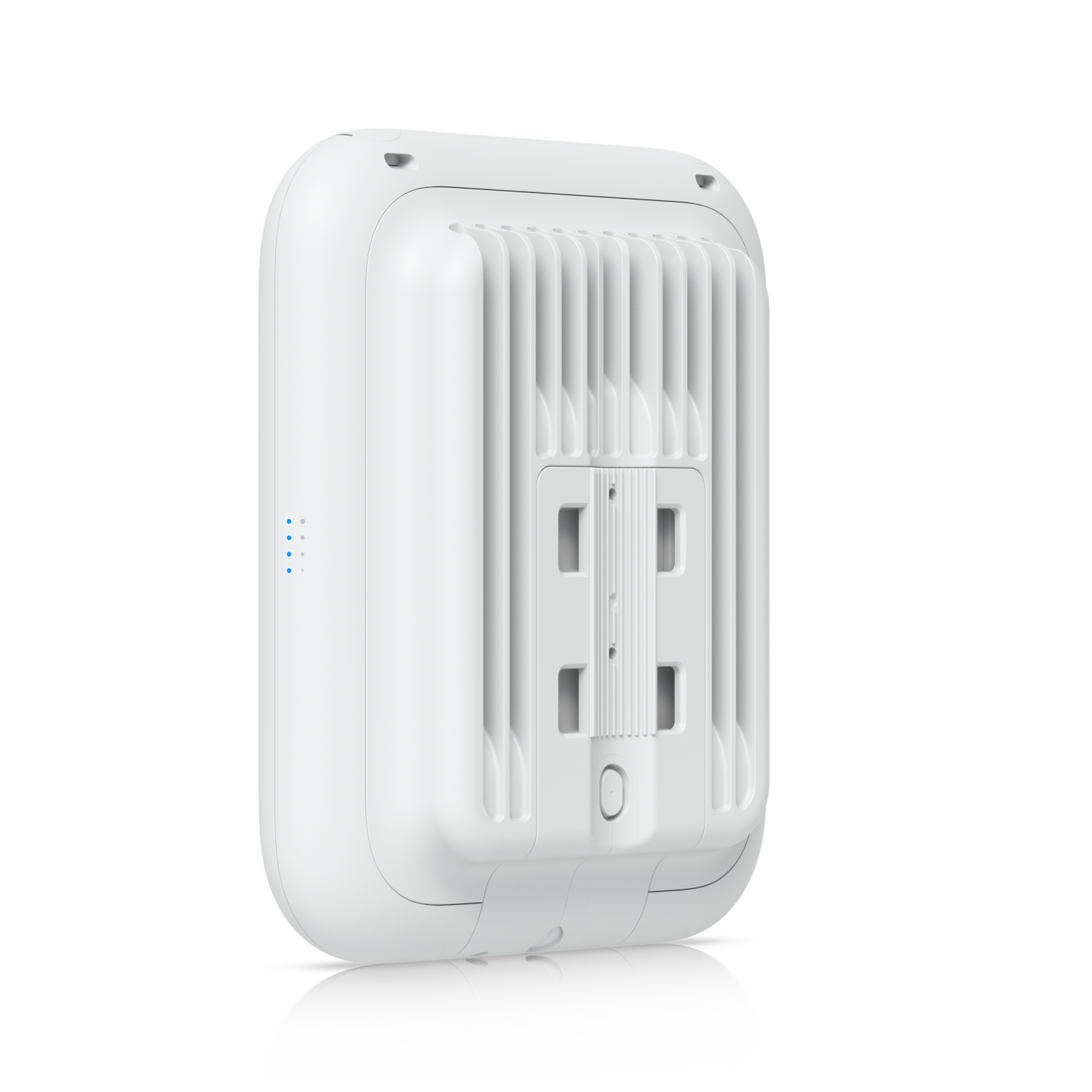

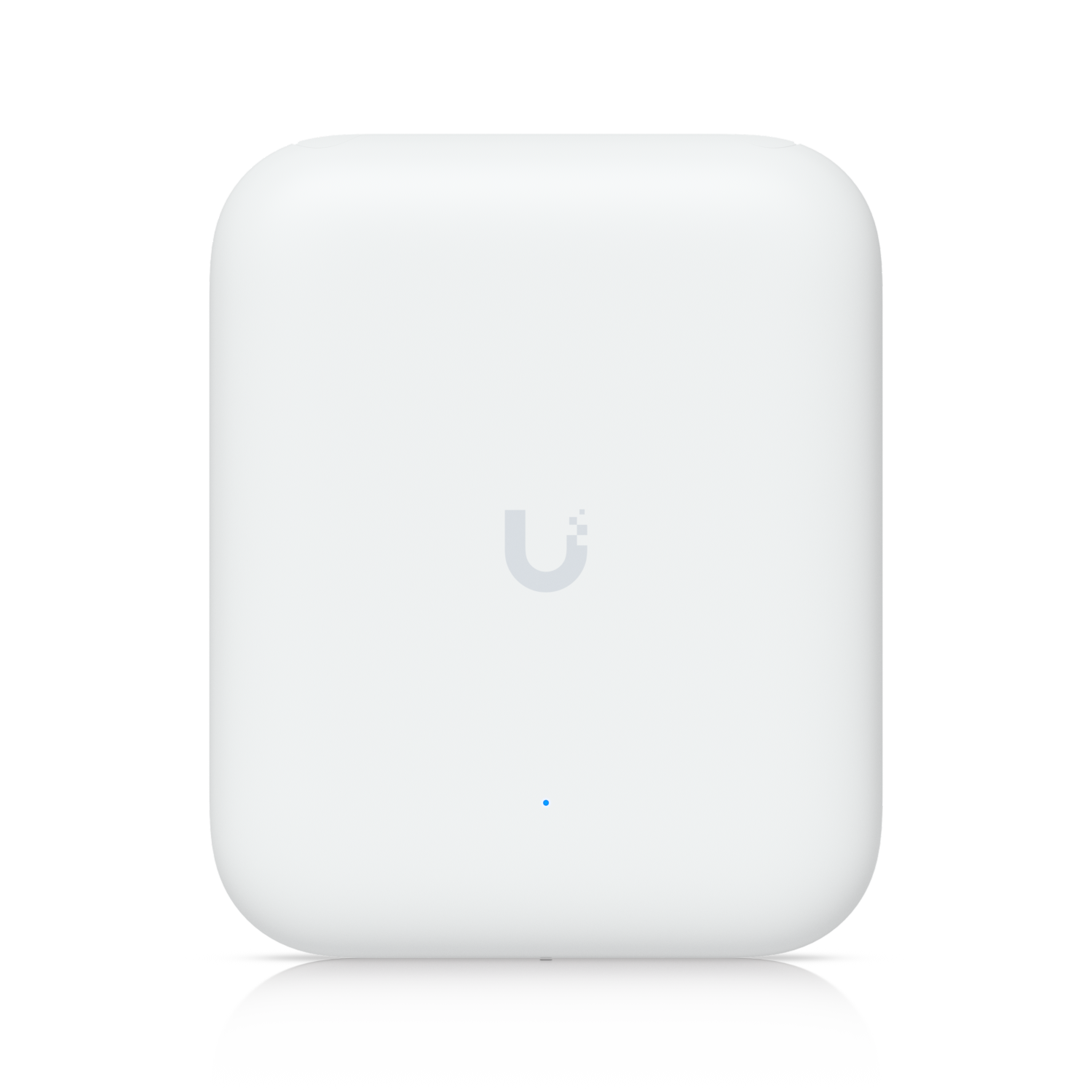

Ubiquiti U7-Outdoor UniFi Dual-Band Weatherproof Wi-Fi 7 AP

Dimensions 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1″)
WiFi Standard WiFi 7
Spatial Streams 4
Coverage Area 465 m² (5,000 ft²)
Max. Client Count 250+
Uplink 2.5 GbE
Mounting Wall, Pole (Mounts Included)
Weatherproofing IPX6
Power Method PoE+

MIMO

5 GHz 2 x 2 (DL/UL MU-MIMO)
2.4 GHz 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz 4.3 Gbps (BW240)
2.4 GHz 688 Mbps (BW40)

Antenna Gain

5 GHz Directional internal: 12.5 dBi, 45° x 45° External omni: 4 dBi, 360° x 30°
2.4 GHz Directional internal: 8 dBi, 90° x 90° External omni: 3 dBi, 360° x 30°

Max. TX Power

5 GHz 26 dBm
2.4 GHz 23 dBm

Max. BSSIDs 8 per Radio

Supported Data Rates

802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

✓ Wireless Meshing
✓ Band Steering
✓ 802.11v BSS Transition Management
✓ 802.11r Fast Roaming
✓ 802.11k Radio Resource Management (RRM)
✓ Advanced Radio Management
✓ Passpoint (Hotspot 2.0)
✓ Captive Hotspot Portal

✓ Custom Branding Landing Page
✓ Voucher Authentication
✓ Payment-Based Authentication
✓ External Portal Server Support
✓ Password Authentication
✓ Guest Network Isolation
✓ Private Pre-Shared Key (PPSK)
✓ WiFi Speed Limiting
✓ Client Device Isolation
✓ WiFi Schedules
✓ RADIUS over TLS (RadSec)
✓ Dynamic RADIUS-assigned VLAN

Max. Power Consumption 19W
Supported Voltage Range 42.5—57V DC
Networking Interface (1) 1/2.5 GbE RJ45 port
Weight 1.2 kg (2.6 lb)
Wind Loading 74.6 N at 200 km/h (16.8 lbf at 125 mph)
Pole Mount Diameter 1–2.36″ (25–60 mm)
Antennas (1) Directional internal antenna (2) External omni antennas (2) RP-SMA connectors for external antenna

Antenna beamwidth
5 GHz 45°
2.4 GHz 90°

Management Ethernet
Enclosure Material UV-stabilized polycarbonate, aluminum alloy
Mount Material Polycarbonate, SGCC steel

LEDs
System (1) Power: White/Blue (1) System: White/Blue (4) Mesh Signal: Blue

Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

✓ NDAA Compliant
Certifications CE, FCC, IC, Anatel: 08999-24-08356

Operating Frequency
US/CA: 2400 – 2472 MHz
U-NII-1: 5150 – 5250 MHz
U-NII-2A: 5250 – 5350 MHz
U-NII-2C: 5470 – 5725 MHz
U-NII-3: 5725 – 5850 MHz
Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz

Ambient Operating Temperature -30 to 60° C (-22 to 140° F)
Ambient Operating Humidity 5 to 95% noncondensing
