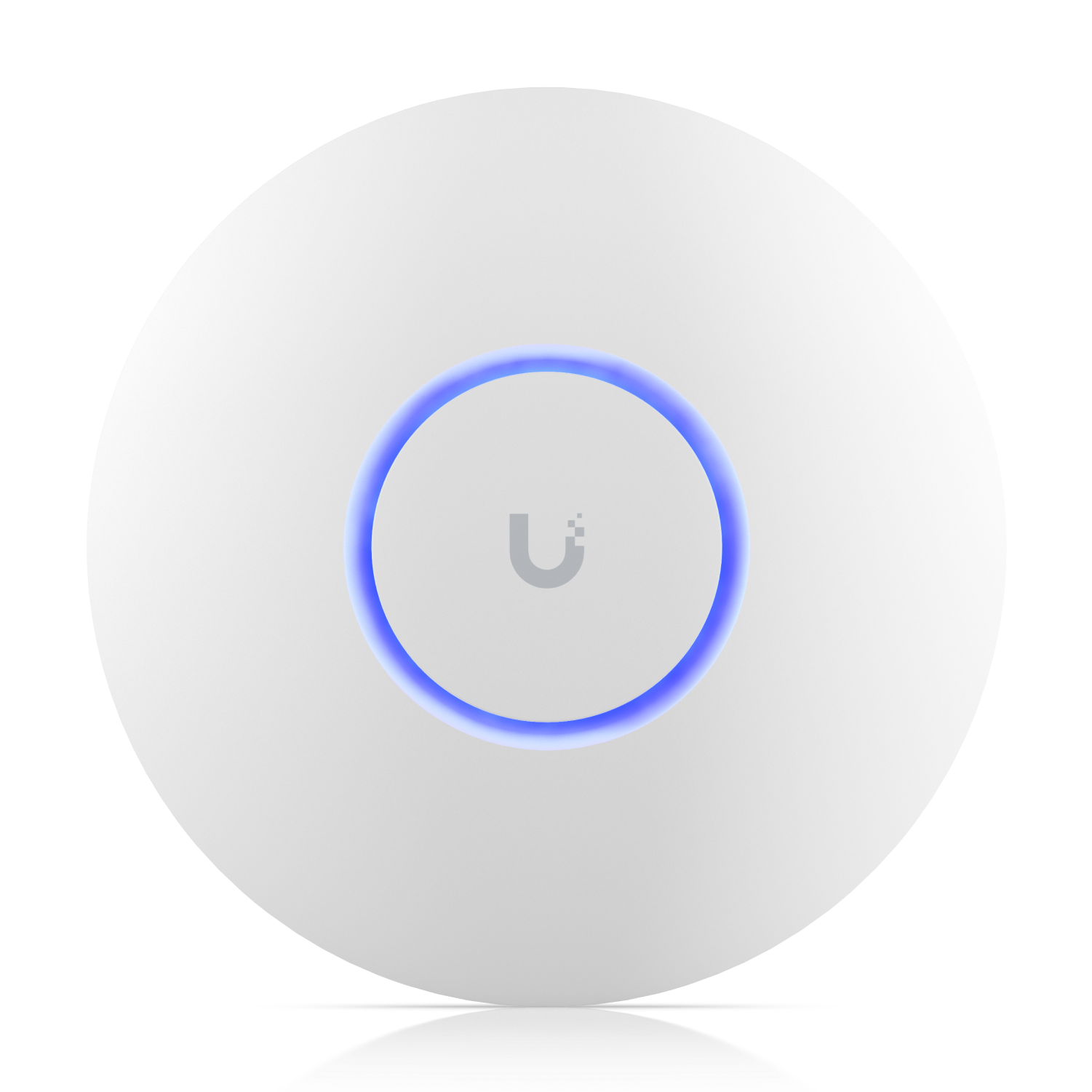

Ubiquiti U7 Lite Dual Band Wi-Fi 7 IEEE 802.11, 4.30 Gbit/s Wireless Access Point ( U7-Lite )

Dimensions Ø171.5 x 33 mm (Ø6.8 x 1.3″)
WiFi Standard WIFi 7
Spatial Streams 4
Coverage Area 115 m² (1,250 ft²)
Max. Client Count 200+
Uplink 2.5 GbE
Mounting Ceiling, Wall (Lite Mount Included)
Power Method PoE

MIMO
5 GHz 2 x 2 (DL/UL MU-MIMO)
2.4 GHz 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz 4.3 Gbps (BW240)
2.4 GHz 688 Mbps (BW40)
Antenna Gain
5 GHz 5 dBi
2.4 GHz 4 dBi
Max. TX Power
5 GHz 24 dBm
2.4 GHz 23 dBm
Max. BSSIDs 8 per Radio
Supported Data Rates
802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

✓ Wireless Meshing
✓ Band Steering
✓ 802.11v BSS Transition Management
✓ 802.11r Fast Roaming
✓ 802.11k Radio Resource Management (RRM)
✓ Advanced Radio Management
✓ Passpoint (Hotspot 2.0)
Captive Hotspot Portal
✓ Custom Branding Landing Page
✓ Voucher Authentication
✓ Payment-Based Authentication
✓ External Portal Server Support
✓ Password Authentication
✓ Guest Network Isolation
✓ Private Pre-Shared Key (PPSK)
✓ WiFi Speed Limiting
✓ Client Device Isolation
✓ WiFi Schedules
✓ RADIUS over TLS (RadSec)
✓ Dynamic RADIUS-assigned VLAN

Max. Power Consumption 13W
Supported Voltage Range 42.5—57V DC
Networking Interface (1) 2.5 GbE RJ45 port
Weight 313 g (11 oz)
Management Ethernet
Enclosure Material UV-stabilized polycarbonate
Mount Material UV-stabilized polycarbonate, galvanized steel (SGCC)
LEDs System White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
✓ NDAA Compliant
Certifications CE, FCC, IC, Anatel, SRRC
Ambient Operating Temperature -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing

Application Requirements
