Dimensions 93 x 62 x 35 mm (3.7 x 2.4 x 1.4″)
Weight 156 g (5.5 oz)
Output Voltage 48V DC @ 0.65A
Rated Voltage 100—240V AC @ 50/60Hz
LAN Activity Indicator —
Gigabit LAN Port ✓
Remote Reset Capability —
Reset Button —
2-Pair Powering Pins 4, 5 (+) and 7, 8 (-)
AC Connector IEC-320 C6
Clamping Protection 11V Data, 60V Power
Data In / PoE RJ45 Shielded Socket
Input Current 0.75A Max.
Inrush Current <100A peak at 26°C
Efficiency 87%
Switching Frequency 70 kHz Max.
Output Ripple 1% Max.
Line Regulation ≤ 3%
Load Regulation ≤ 5%
Max. Surge Discharge 1500A (8/20 μs) Power
Peak Pulse Current 36A (10/1000 μs) Data
Response Time <1 ns
Shunt Capacitance <5 pF Data
Surge Protection Difference and Common Mode
Ambient Storage Temperature -30 to 70° C (-22 to 158° F)
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 10 to 95% Noncondensing
NDAA Compliant ✓
Certifications CE, FCC, IC, UL, CCC
Accessories

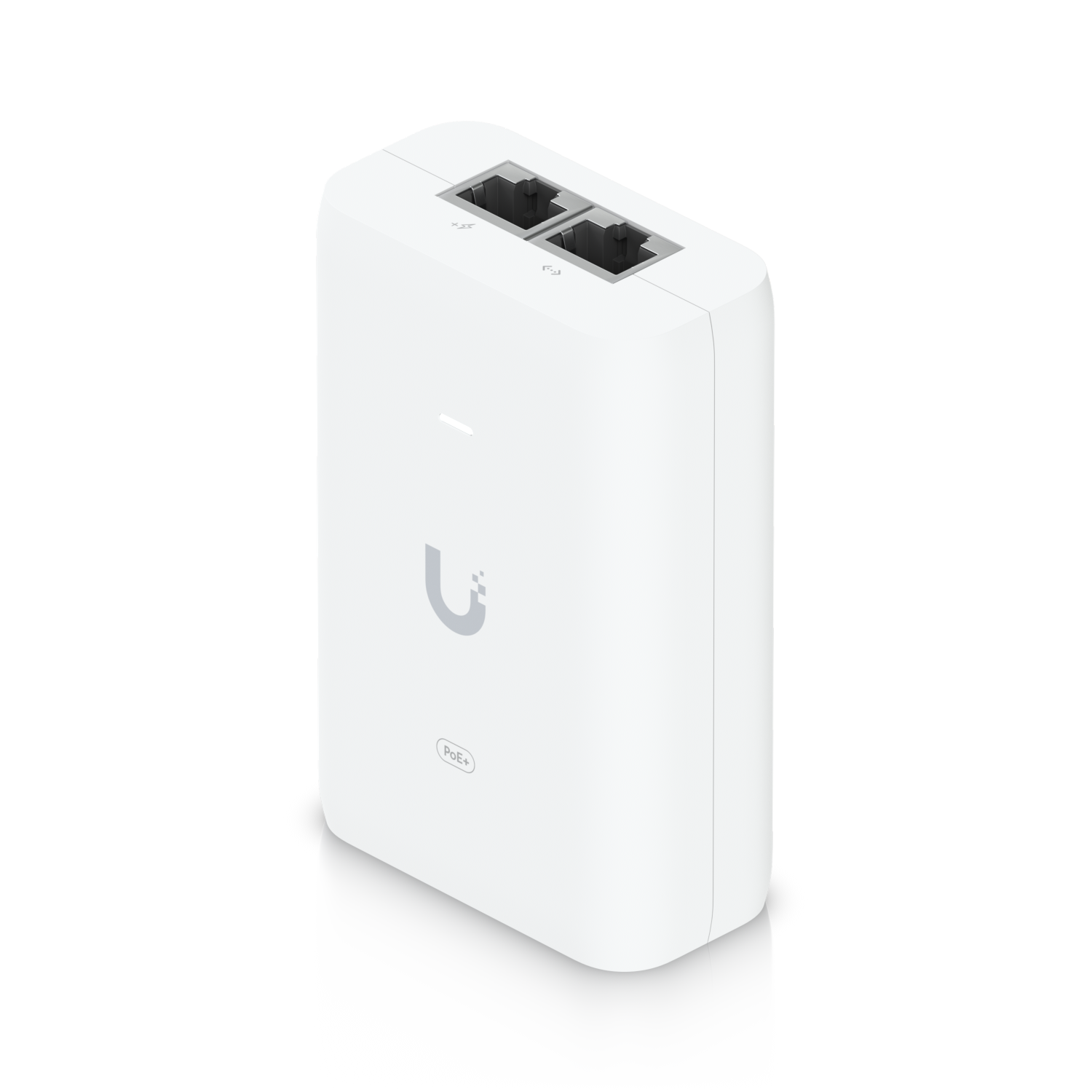

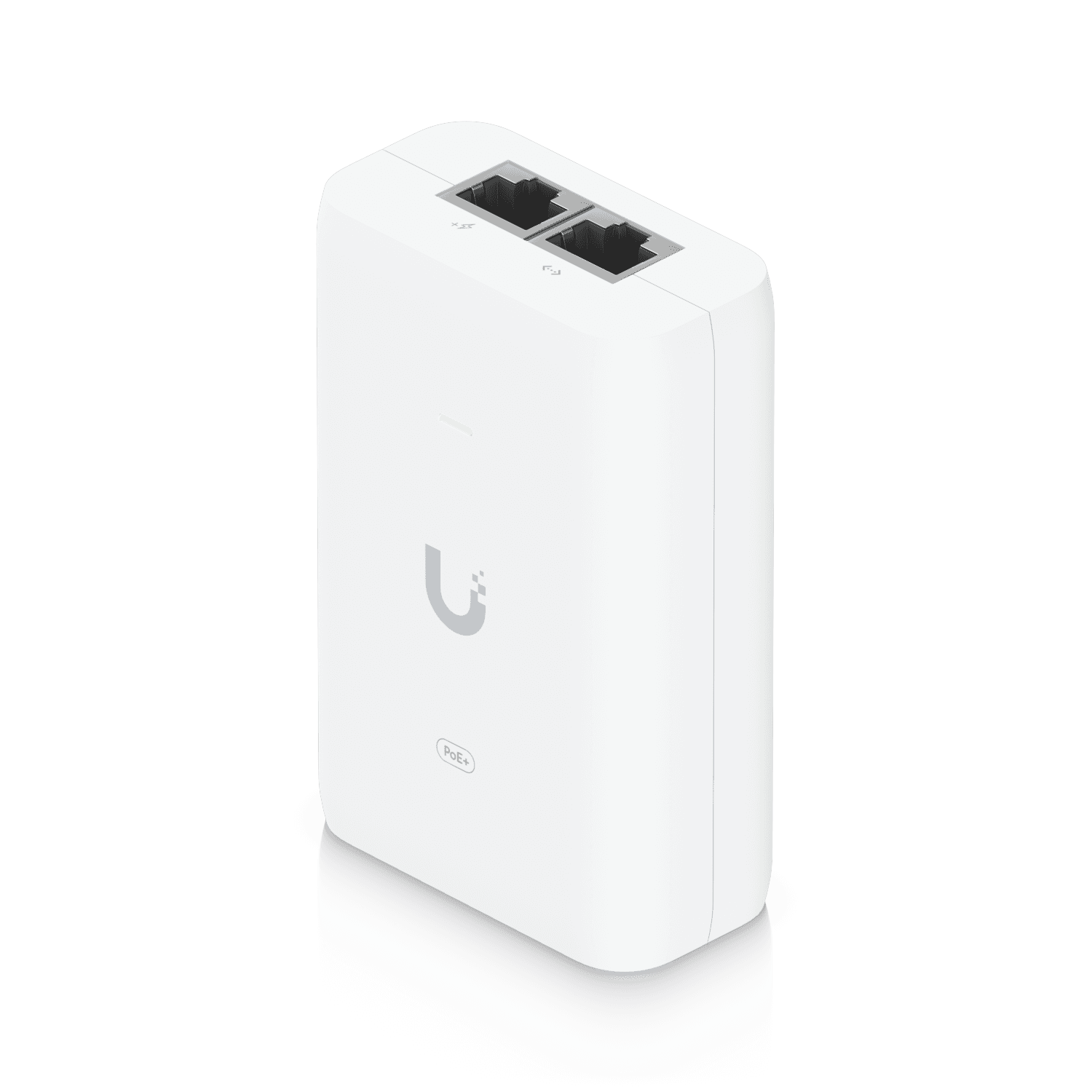

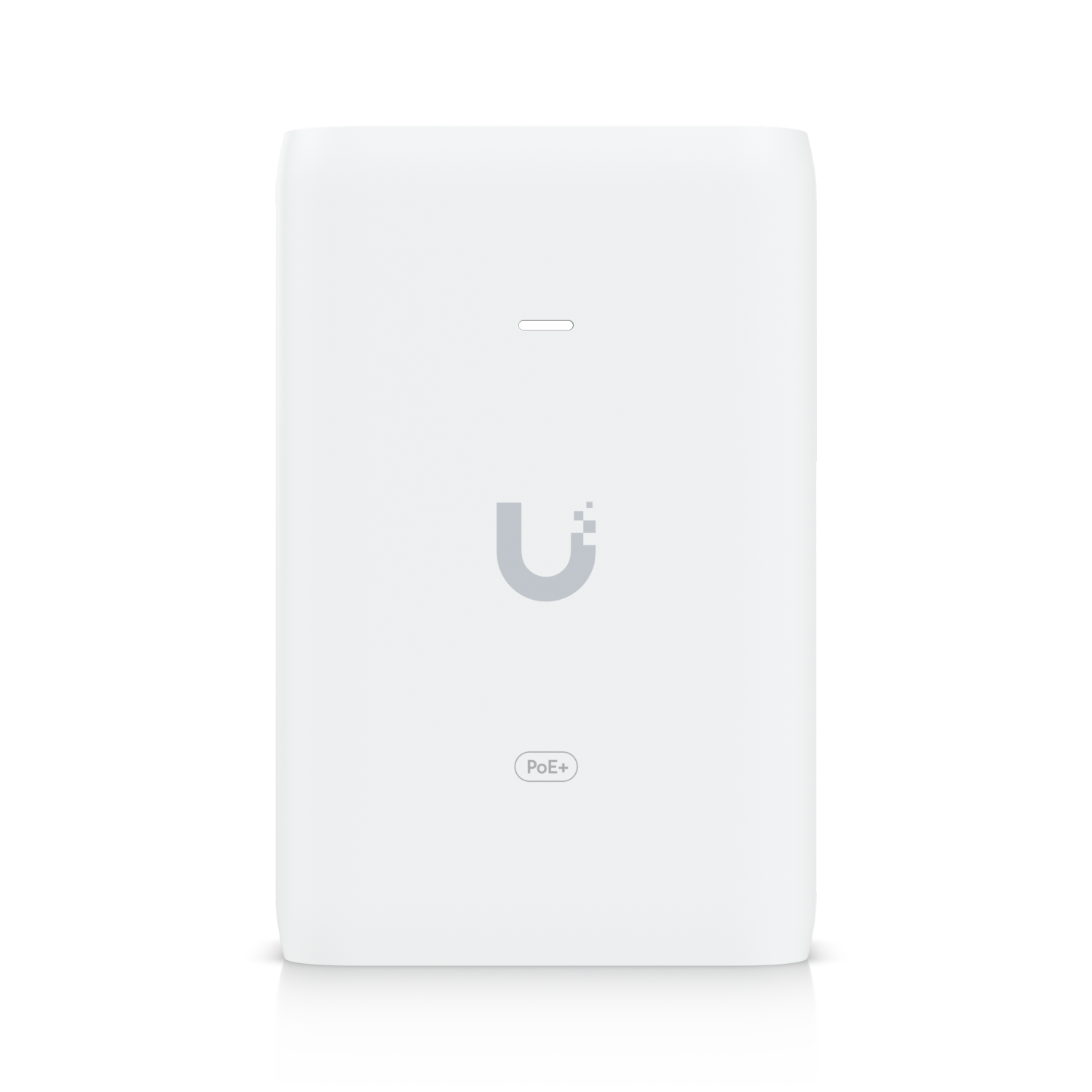

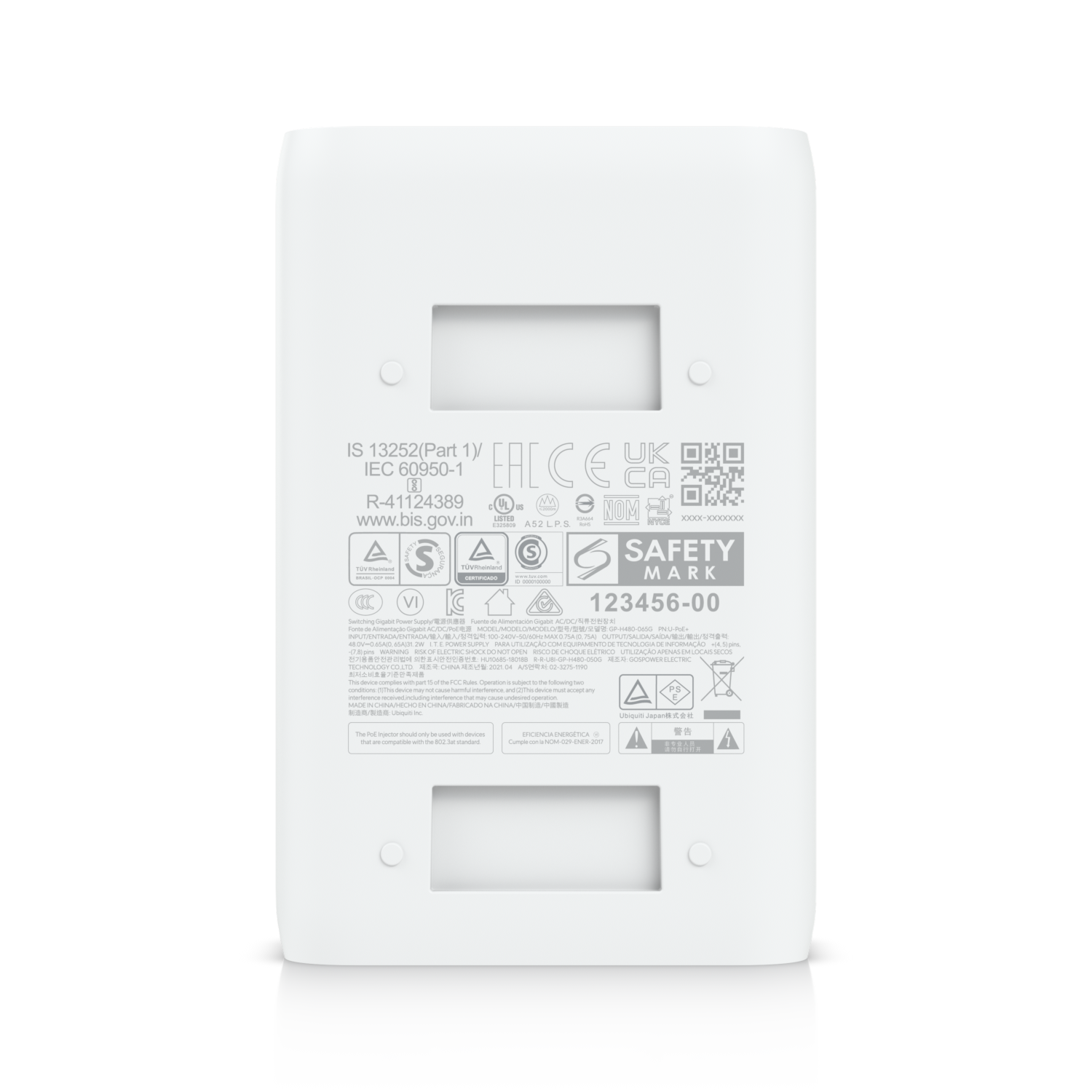

Ubiquiti POE Injector, 802.3AT, 30W of PoE+ Power, Suitable For U6 AP U6-LR, U6-LITE & U6-PRO
$39.00
+ Free ShippingAn adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
Delivers up to 30W of PoE+
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE+ output
LED indicator for status monitoring
