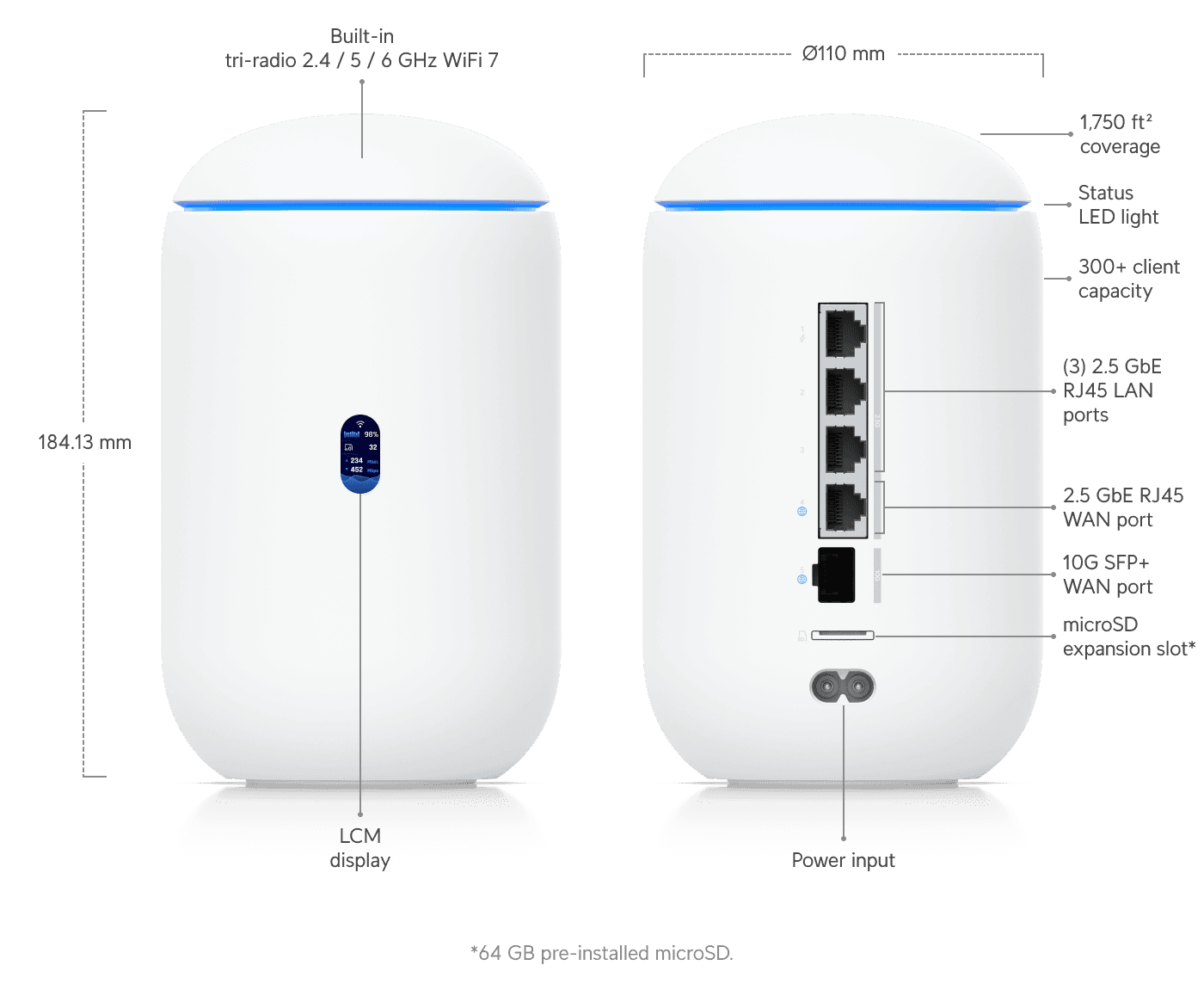

Dimensions Ø110 x 184.1 mm (Ø4.3 x 7.3″)
UniFi Application Suite
Network
✓ Protect
✓ Access
✓ Talk
✓ Connect
✓ Managed UniFi Devices 30+
Managed Cameras (5) HD (2) 2K (1) 4K
Simultaneous Users Connected 300+
Max. WAN Port Count 4
Default WAN Ports (1) 10G SFP+ (1) 2.5 GbE RJ45

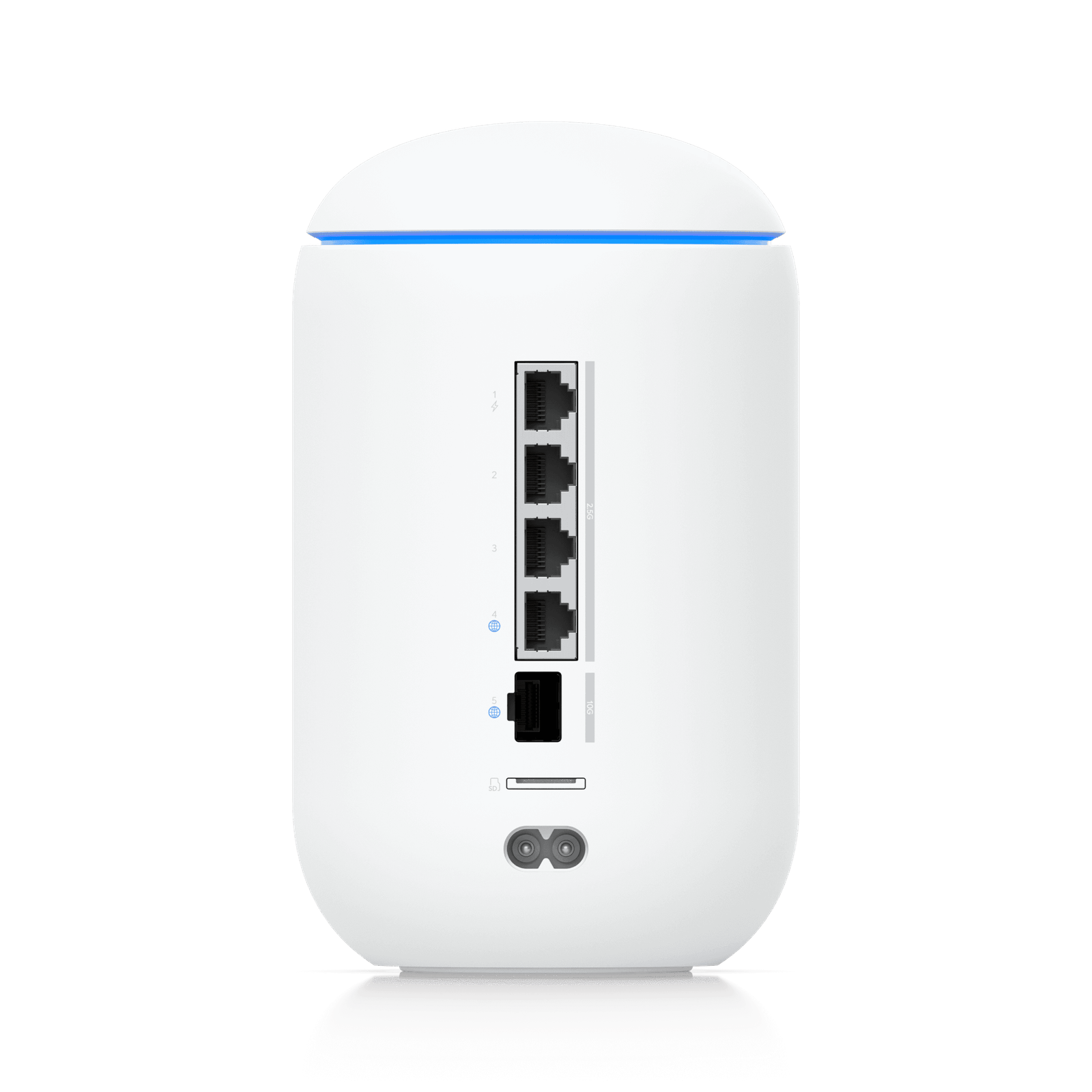

Port Layout
2.5 GbE RJ45 4 (1 PoE) (2.5G/1G/100M/10M)
10G SFP+ 1 (10G/1G)
IDS/IPS Throughput 2.3 Gbps
Form Factor Compact desktop
Coverage Area 160 m² (1,750 ft²)
✓ Application-Aware Layer 7 Firewall
✓ DPI & Traffic Identification
✓ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓ Content Filtering
✓ Intrusion Prevention (IPS/IDS)
✓ Ad Blocking
IDS/IPS Signatures 20,000+ with CyberSecure
✓ VLAN/Subnet-based Traffic Segmentation
✓ License-Free SD-WAN
✓ Site-to-Site VPN
✓ Site Magic
✓ IPsec
✓ OpenVPN
✓ VPN Server
✓ Identity Endpoint One-Click VPN
✓ Teleport Zero-Configuration VPN
✓ WireGuard
✓ OpenVPN
✓ L2TP
✓ VPN Client
✓ OpenVPN
✓ WireGuard
✓ Multi-WAN Load Balancing
Dynamic Routing
✓ OSPF
✓ Advanced QoS
✓ Multicast DNS (mDNS)
✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓ Integrated RADIUS Server
✓ RADIUS over TLS (RadSec)
✓ Additional Internet Failover with UniFi LTE Backup
✓ Internet Quality and Outage Reporting
✓ MAC Address Table Size 2,000
✓ Policy-based WAN and VPN Routing
✓ Customizable DHCP Server
✓ IPv6 ISP Support
✓ IGMP Proxy
✓ WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput:
✓ 6 GHz: 5.7 Gbps
✓ 5 GHz: 4.3 Gbps
✓ 2.4 GHz: 688 Mbps
MIMO:
✓ 6 GHz: 2 x 2 (DL/UL MU-MIMO)
✓ 5 GHz: 2 x 2 (DL/UL MU-MIMO)
✓ 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Antenna Gain:
✓ 6 GHz: 6 dBi
✓ 5 GHz: 7 dBi
✓ 2.4 GHz: 5 dBi
Max. TX Power:
✓ 6 GHz: 24 dBm
✓ 5 GHz: 26 dBm
✓ 2.4 GHz: 23 dBm
Wireless Security:
✓ WPA-PSK
✓ WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs:
✓ 4 per Radio
Supported Data Rates:
✓ 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
✓ 802.11b: 1, 2, 5.5, 11 Mbps
✓ 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
✓ 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
✓ 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
✓ 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
✓ 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)
NVR Storage:
✓ Pre-installed 64GB microSD for NVR
✓ Expansion Slot: MicroSD Card
PoE:
✓ PoE Budget: 15.4W
✓ Max. PoE Wattage per Port by PSE: 15.4W
✓ Voltage Range PoE Mode: 44–57V
Power:
✓ Max. Power Consumption: 26W (Excluding PoE output)
✓ Power Method: Universal AC input, 100–240VAC, 1.5A Max, 50/60 Hz
✓ Power Supply: AC/DC, Internal, 50W
✓ Supported Voltage Range: 100–240V AC
Processor & Memory:
✓ Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
✓ System Memory: 3 GB
Physical:
✓ Weight: 1.1 kg (2.4 lb)
✓ Enclosure Material: Polycarbonate

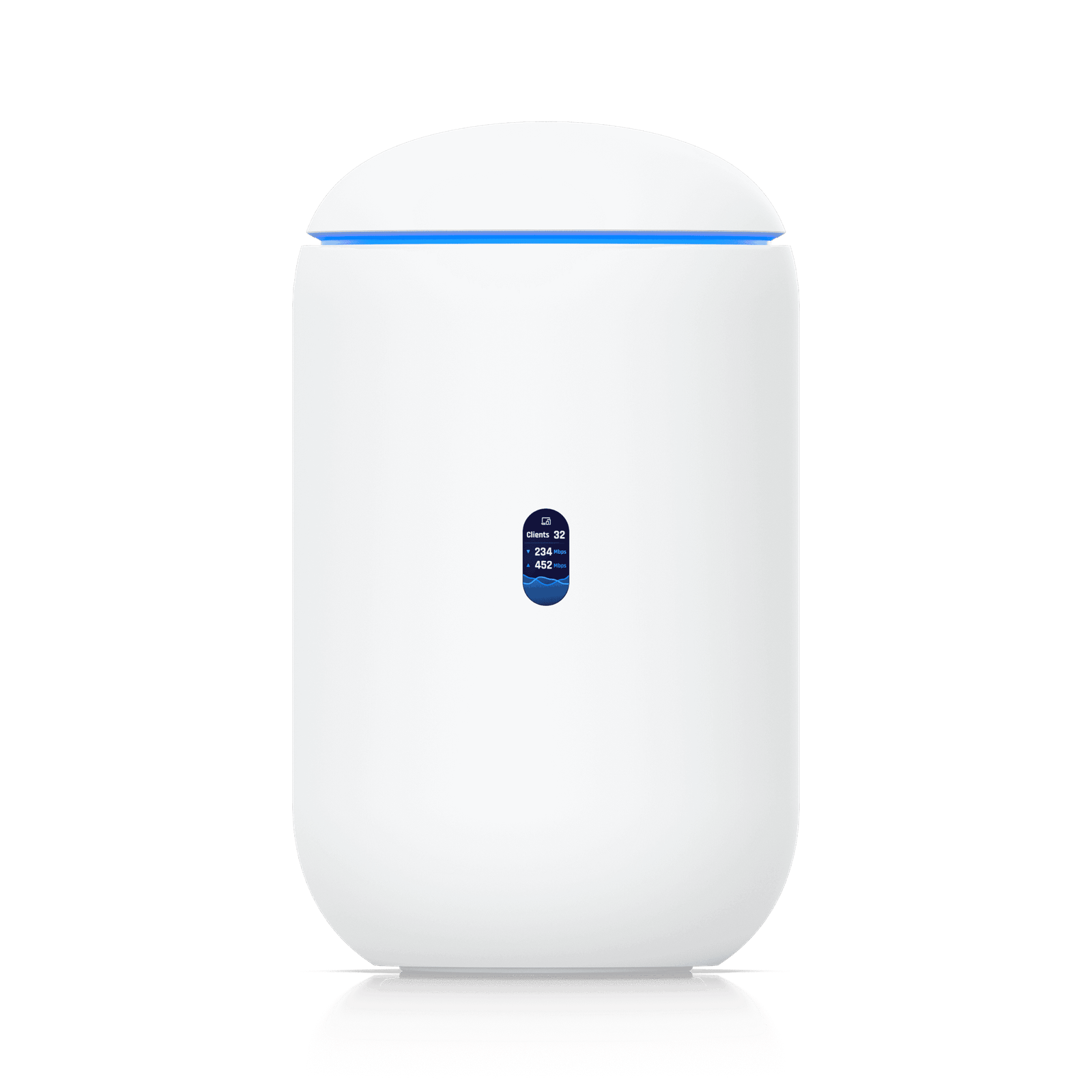

✓ LCM Display: 0.96″ status display
Management:
✓ Ethernet
✓ Bluetooth
LEDs & Buttons:
✓ System LED
✓ Button: (1) Factory-reset
✓ ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
Environment:
✓ Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
✓ Ambient Operating Humidity: 5 to 95% noncondensing
Compliance:
✓ NDAA Compliant
✓ Certifications: CE, FCC, IC
VLAN 802.1Q
✓ Guest Traffic Isolation
Application Requirements
UniFi Network Version 9.0.108 and later
