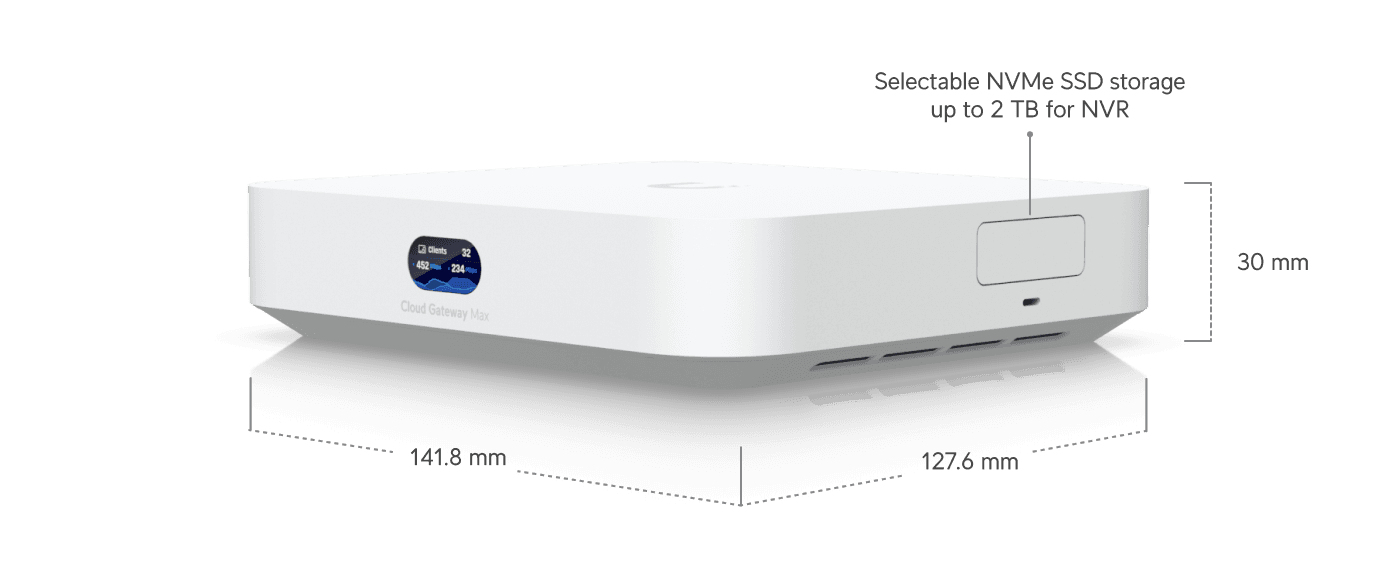

Dimensions 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2″)
UniFi Application Suite
Network
✓ Protect
✓ Access
✓ Talk
✓ Connect
Managed UniFi Devices
30+ Managed Cameras (15 HD, 8 2K, 5 4K)
Managed Access Hubs 50
Simultaneous Users Connected 300+
Max. WAN Port Count 4
Default WAN Ports
(1) 2.5 GbE RJ45
Port Layout
2.5 GbE RJ45 5 (2.5G/1G/100M/10M)
IDS/IPS Throughput 2.3 Gbps
Form Factor Compact desktop
Stateful Firewall
✓ Application-Aware Layer 7 Firewall
✓ DPI & Traffic Identification
✓ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓ Content Filtering
✓ Intrusion Prevention (IPS/IDS)
✓ Ad Blocking
✓ IDS/IPS Signatures 55,000+ with CyberSecure
✓ VLAN/Subnet-based Traffic Segmentation
License-Free SD-WAN ✓
Site-to-Site VPN
Site Magic ✓
IPsec ✓
OpenVPN ✓
VPN Server
Identity Endpoint One-Click VPN ✓
Teleport Zero-Configuration VPN ✓
WireGuard ✓
OpenVPN ✓
L2TP ✓
VPN Client
OpenVPN ✓
WireGuard ✓
Multi-WAN Load Balancing ✓
Dynamic Routing
OSPF ✓
Advanced QoS ✓
Multicast DNS (mDNS) ✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓
Integrated RADIUS Server ✓
RADIUS over TLS (RadSec) ✓
Additional Internet Failover with UniFi LTE Backup ✓
Internet Quality and Outage Reporting ✓
MAC Address Table Size 2,000
Policy-based WAN and VPN Routing ✓
Customizable DHCP Server ✓
IPv6 ISP Support ✓
IGMP Proxy ✓
NVR Storage
Selectable NVMe SSD up to 2 TB
Max. Power Consumption 16.1W
Power Method USB type C (5V DC/5A)
Power Supply USB type C (5V DC/5A) (Adapter included)
Supported Voltage Range 100—240V AC
Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory 3 GB
Weight Without SSD: 460 g (1 lb) | With SSD: 519 g (1.1 lb)
Enclosure Material Polycarbonate
LCM Display 0.96″ status display
Management Ethernet Bluetooth
LEDs
✓ Ethernet
Button (1) Factory-reset
ESD/EMP Protection
Air: ± 8kV | Contact: ± 4kV
Ambient Operating Temperature -10 to 40° C (14 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
✓ NDAA Compliant
Certifications CE, FCC, IC, Anatel, SRRC
Application Requirements
UniFi Network Version 8.x and later
