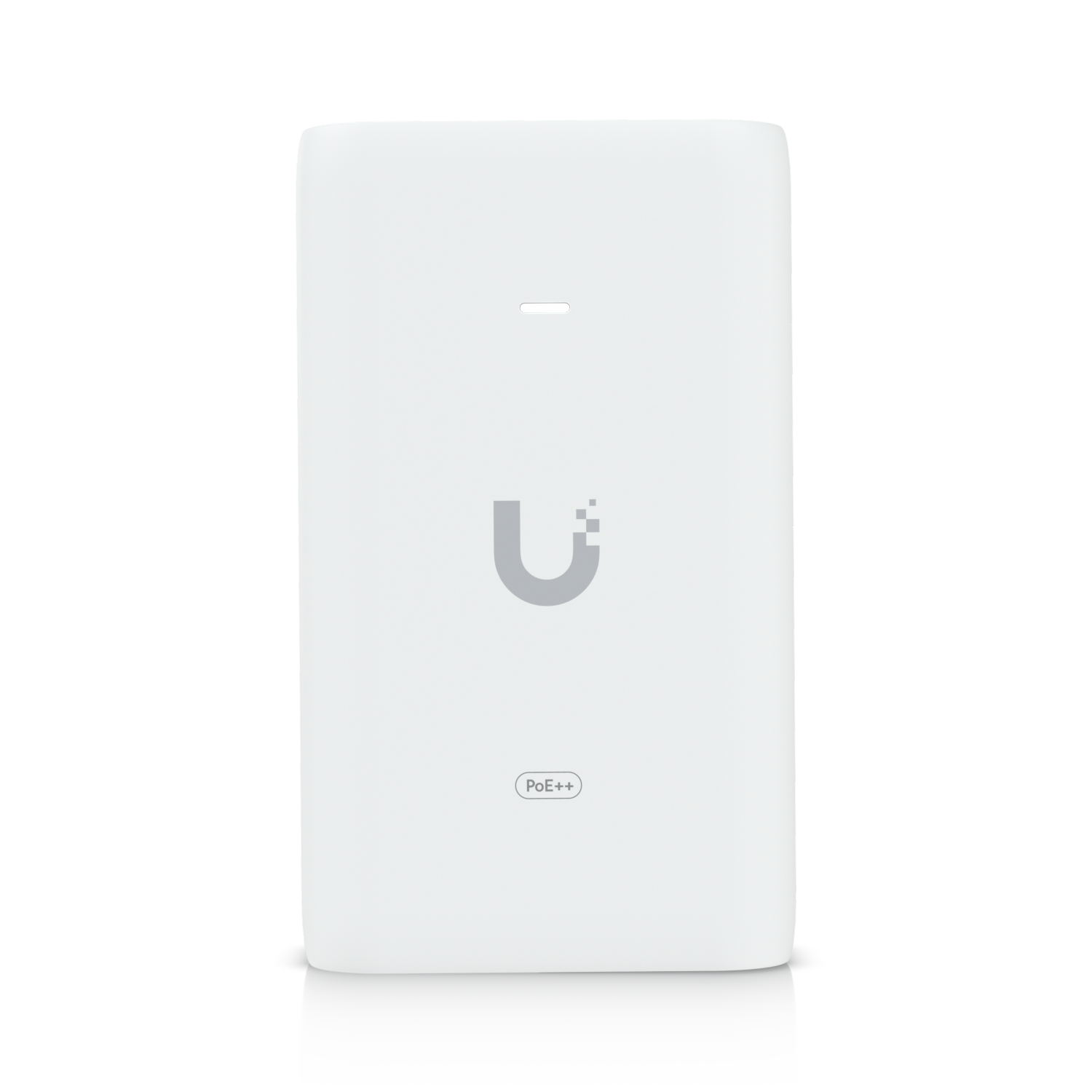

Delivers up to 90W of PoE+++
Surge, peak pulse, and overcurrent protection

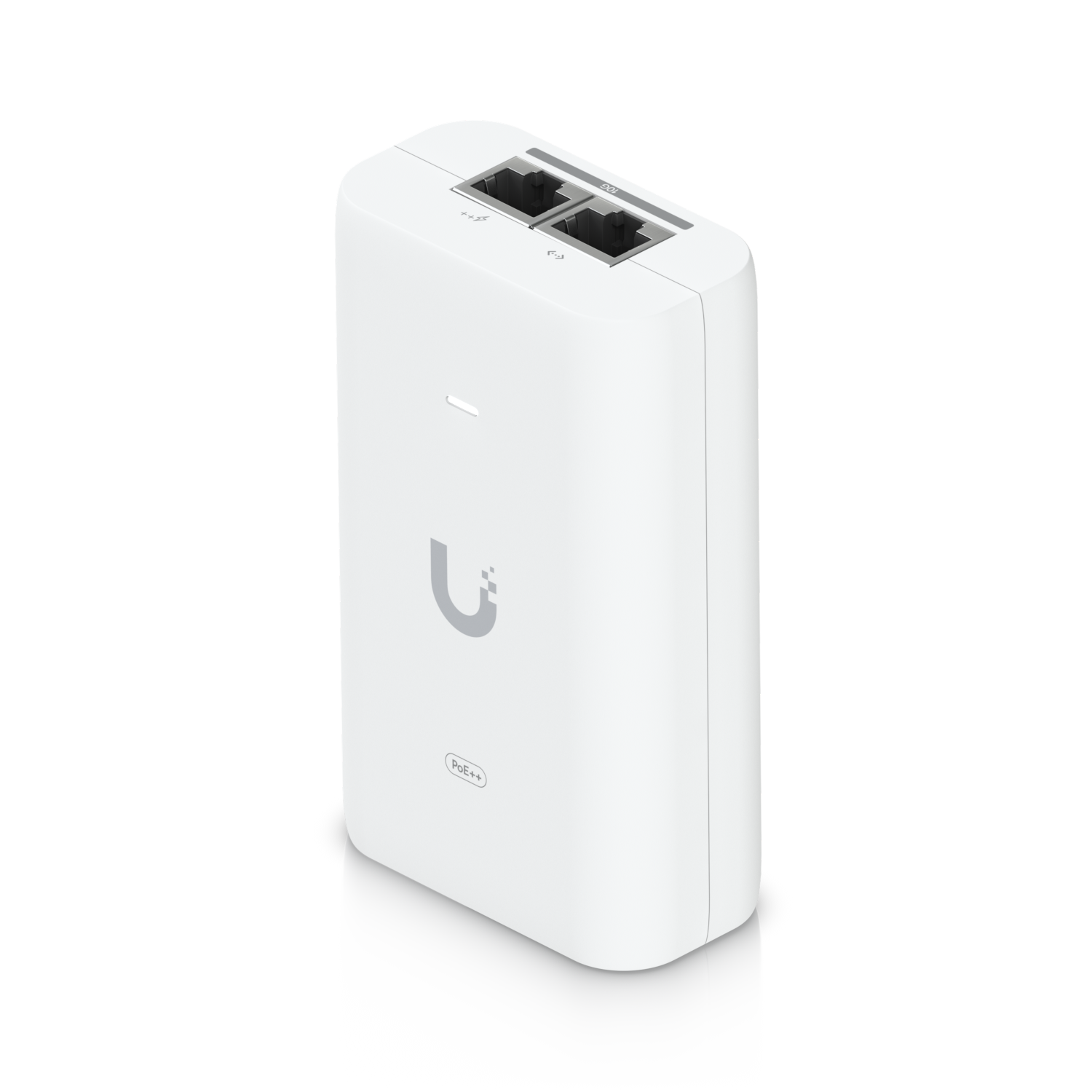

Contains RJ45 data input, AC cable with earth ground, and PoE+++ output
LED indicator for status monitoring

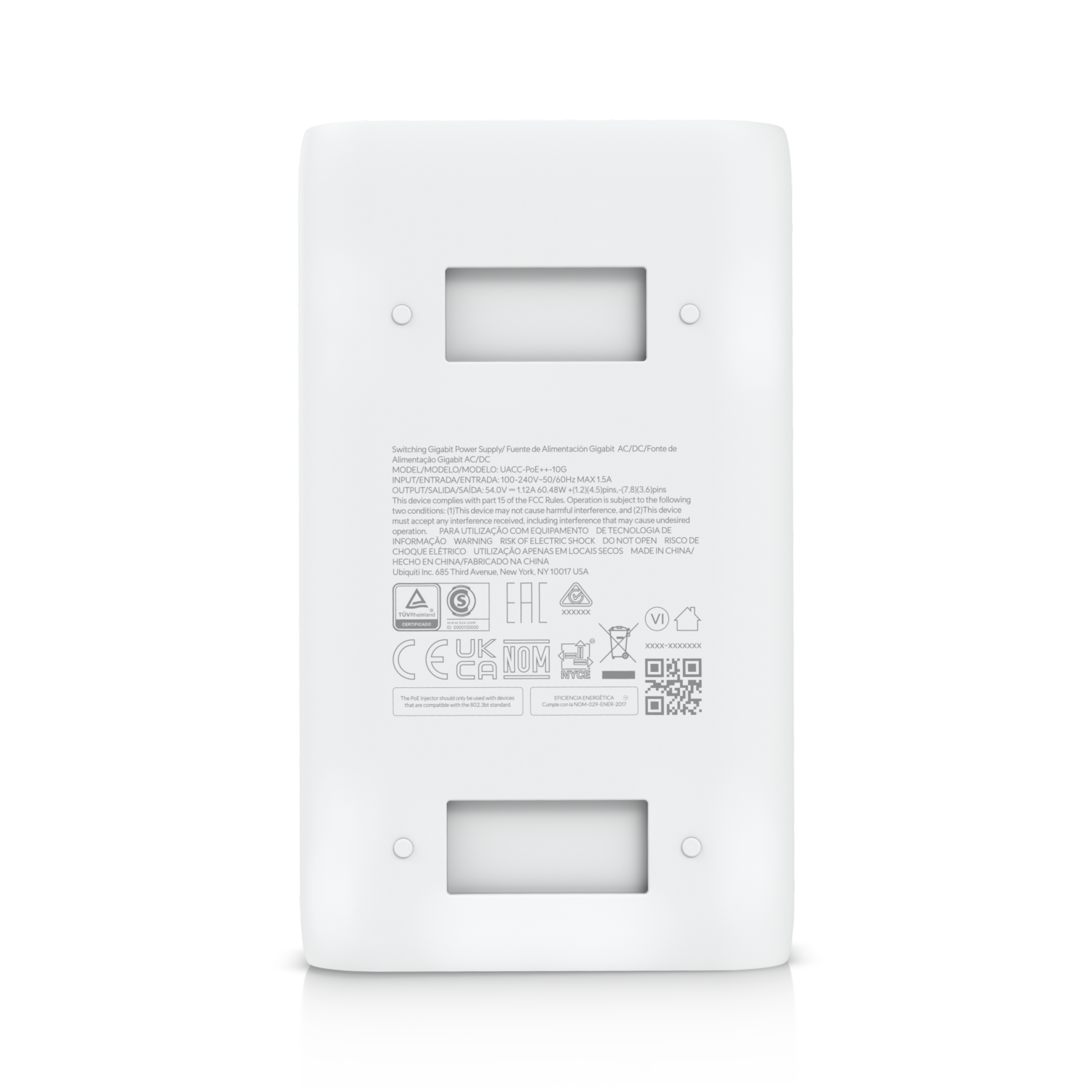

Supports wall mount, DIN rail and floating mount*
Dimensions 164.5 x 71 x 42 mm (6.5 x 2.8 x 1.7″)
Weight 372 g (13.1 oz)
Output Voltage 54V DC @ 1.67A
Rated Voltage 100—240V AC at 50/60Hz
LAN Activity Indicator —
✓ Gigabit LAN Port
Remote Reset Capability —
Reset Button —
4-pair Powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Clamping Protection 11V data, 60V power
Data In / PoE RJ45 shielded socket
Input Current 1.5A Max.
Inrush Current <120A peak @ 230V AC
Efficiency >88%
Switching Frequency 65 kHz
Output Ripple 1% Max.
Line Regulation ≤ 2%
Load Regulation ≤ 5%
Max. PoE+ Wattage per Port by PSE 90W
Max. Surge Discharge 1500A (8/20 μs) power
Peak Pulse Current 36A (10/1000 μs) data
Response Time <1 ns
Shunt Capacitance <5 pF data
Surge Protection Difference and common mode
Ambient Storage Temperature -30 to 70°C (-22 to 158° F)
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 10 to 95% noncondensing
✓ NDAA Compliant
Certifications CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
